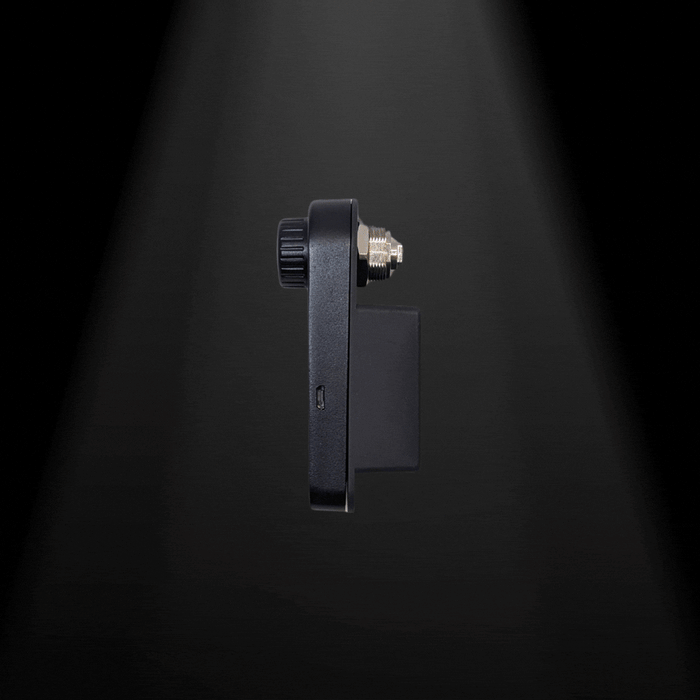

Name: VaultLink™ Automated Locking Module
Brand: Console Vault
SKU: VL
Price: 54.0 USD
Availability: InStock
Rating: 5.0 (4 reviews)

VaultLink™ Automated Locking Module

U.S. Patent No. 12071791

SKU

$54.00 - $183.00

$54.00

$54.00 - $183.00

$54.00

VERIFY PRIOR TO PURCHASE:

The VaultLink module works as intended if the power to the outlet or data port inside your vehicle’s console is cut when the engine is OFF & vice-versa. **NOT ALL VEHICLES FUNCTION THIS WAY, so it is important to test and verify your vehicle’s specific functionality prior to purchasing and installing VaultLink.

!!! IMPORTANT COMPATIBILITY NOTICE

The VaultLink™ Module is ONLY compatible with the Elite Electronic Lock on SELECT safes. To check if this lock works with your safe, search our VaultLink Compatible Safes

INSTALLATION NOTES

PLEASE NOTE: If you do NOT already have an Electronic Lock configured safe, retrofitting the Elite Electronic Lock + VaultLink bundle on an existing safe will require drilling. Refer to the install video below for details.

Quantity

FAQ

Do I need to have an Elite™ Electronic Lock to use VaultLink™?

YES. VaultLink is specifically designed to pair with our Elite™ Electronic Lock. An added benefit of VaultLink is you will no longer have to charge your Electronic Lock once you have integrated with VaultLink!

What if I need to Valet park or let someone else access my vehicle?

VaultLink™ offers a valet mode (manual mode) that you can enable with the flip of a switch to prevent unwanted access in these situations.

What if I don't have a power port accessible from inside my safe?

At this time, Vaultlink™ MUST have access to power from inside your safe.

Console Vault's patented VaultLink™ module pairs with the Elite Electronic Lock to elevate your security and accessibility.

Compatibility

The VaultLink module is currently compatible with specific safe applications, and designed to pair with the Elite Electronic Lock. To check if your safe is compatible, check out our VaultLink collection here.

Requirements:

Your Safe must be compatible with our Elite Electronic Lock
A power port must be rest INSIDE your console safe. Closed box safes and safes without access to our console's power outlets are not currently compatible.
The power to your available ports must IMMEDIATELY turn OFF when your vehicle's ignition is turned off, and back on when the ignition comes back on. (to test this, you can plug a phone into the outlet and turn your car off to see if the phone immediately stops charging)

Console Vault VaultLink™ Retrofit - Installing VaultLink™ on your Existing Safe

Specs:

Offers Auto Mode and Valet Mode (Manual Mode) options.
Full hardware kit and step-by-step instructions included.
Includes USB-C to USB-C cable for connection.
- Please note: Adaptor for USB-A and 12-Volt ports not included.

Features and Benefits:

Automated Locking: VaultLink™ automatically engages the locking mechanism in the locked position when the vehicle’s ignition is turned off and unlocks when the ignition is turned on, eliminating the need for manual locking and mitigating human error.
Seamless Integration: Designed to seamlessly integrate with Console Vault’s existing in-vehicle safes, VaultLink™ ensures a hassle-free installation process and flawless operation.
Enhanced Security: With VaultLink™, users can rest assured that their valuables are safeguarded against unauthorized access, providing an added layer of security for peace of mind on the go.
Convenience: Removes the need to charge your Elite Electronic Lock! Say goodbye to the inconvenience of manually securing your in-vehicle safe. VaultLink™ streamlines the process, allowing users to focus on what matters most. With VaultLink™, you can “set it and forget it.”

Lock Type Feature Comparison

Find the perfect lock type for your Console Vault security needs.

Feature	Barrel Key	3-Digit Combo	4-Digit Combo	Elite™ 4-Digit	Elite™ Electronic	VaultLink™
Auto-Locking	✕	✕	✕	✕	✕	✓
Digital Access	✕	✕	✕	✕	✓	✓
No Manual Entry	✕	✕	✕	✕	✕	✓
Fast Emergency Access	✓	✕	✕	✕	✓	✓
No Keys to Lose	✕	✓	✓	✓	✓	✓
Triple Guard Lock System™	✓	✓	✓	✓	✓	✓
Upgrade Price	$20.00	$20.00	$35.00	$49.00	$99.00	$153.00
Select	Select	Select	Select	Select	Select	Select

vault link

Simple install great addition to the vault

Nice Addition to the Electronic Lock

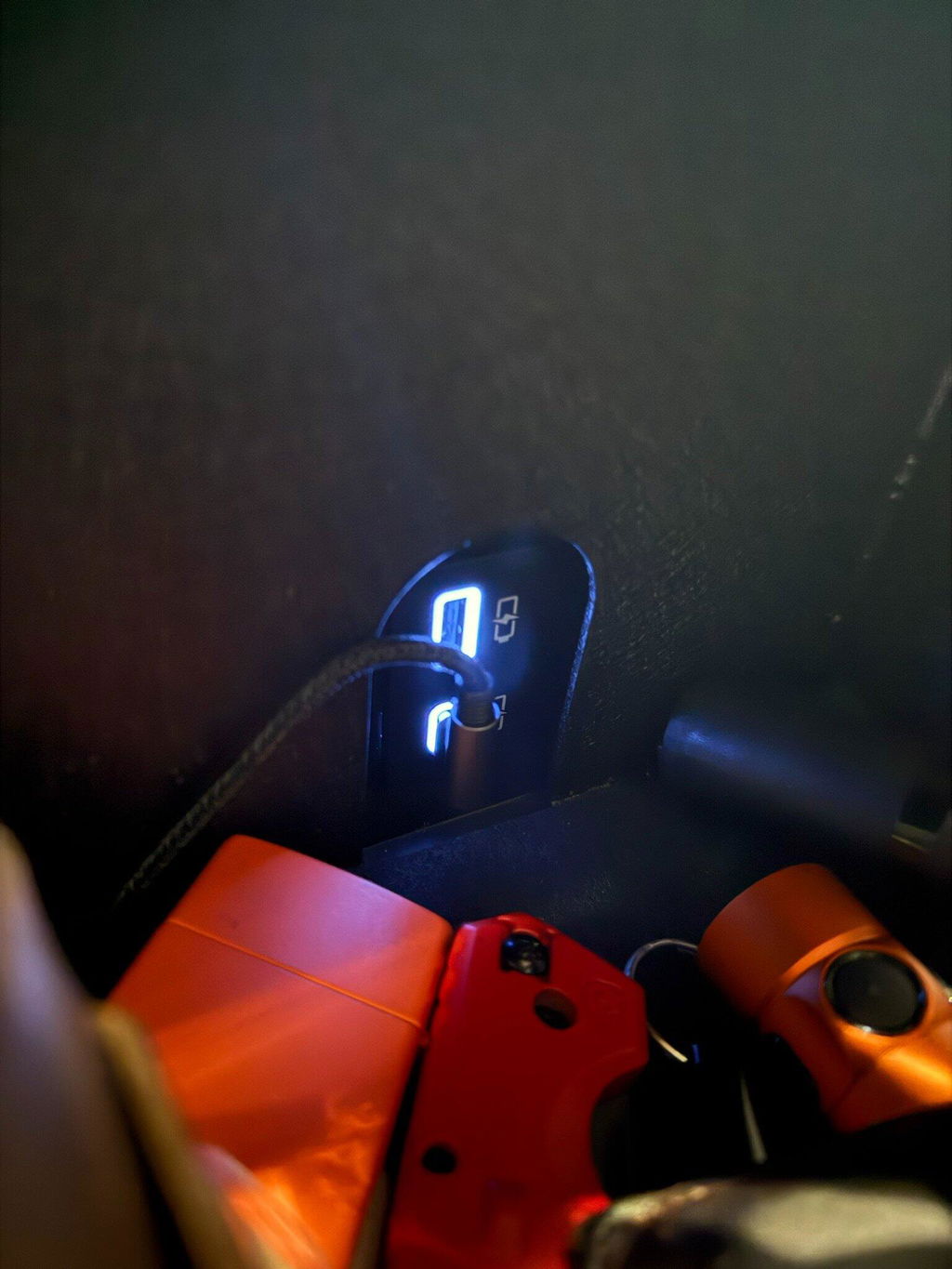

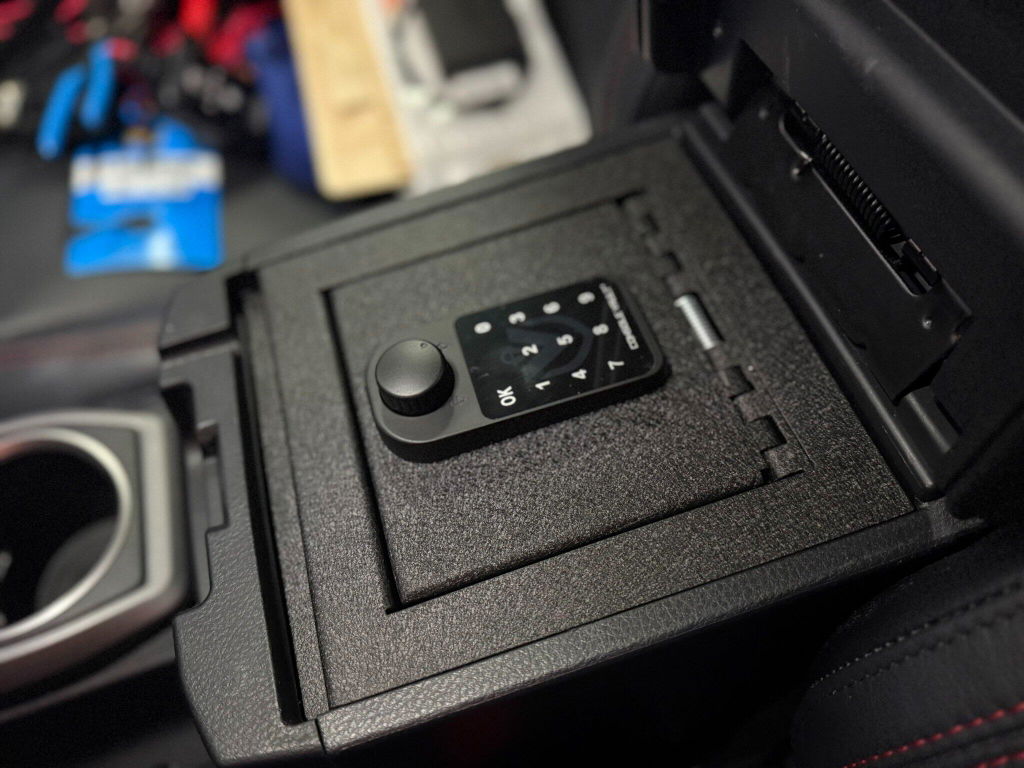

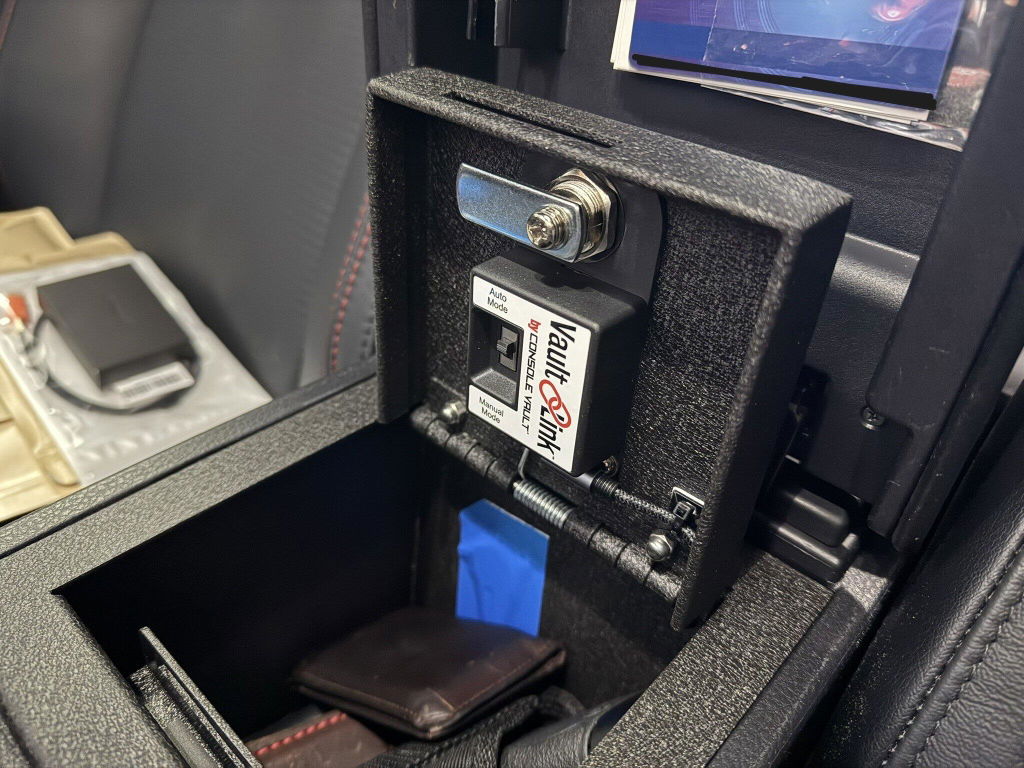

This is a nice edition to your ConsoleVault if you have or can get the electronic lock and you have a switched USB outlet or switched 12V outlet with a USB adapter inside the safe (meaning, it switches on when the vehicle is on and its off when the vehicle is not running). Fairly easy to install, the hardest part is reaching inside the vault and routing the wire along with the attachment pads while it is in the vehicle. Hint: Hang the attachment pads and the plastic ties loosely from the wire, then remove the backing on the pads and press in place, wait a bit, then tighten the plastic ties and cut the extra plastic tie oiff. Also, clean the inside of the safe with rubbing alcohol wherever the pads will end up before starting all this to remove any oils and give the plastic pads a better chance of adhering. It works great and as advertised. Nice safety addition to the safe.

As advertised

This item is a great little enhancement to the console vault; simple to install and works like you'd expect. It wasn't technically compatible with my particular vehicle (2023 Chevrolet Silverado ZR2), but I special ordered a flat USB cable with low profile 90 degree plugs and it worked like a charm.

Awesome Lock

It was easy to install and works great!
